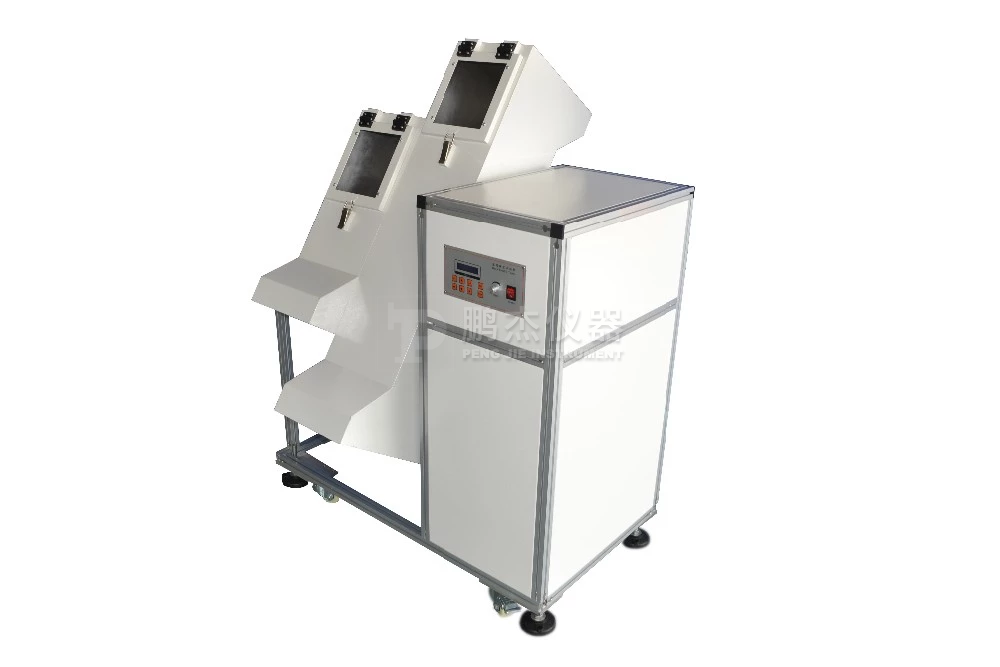

Double drum drop test machine

Brand: PENGJIE

Model:  PJ-DL

Description of Production：

This machine is suitable for continuous rotation (drop) test of mobile phone, PDA, electronic dictionary, CD / MP3.

Test purpose of mobile phone roller drop test machine

1. The durability of the shell.

2. The internal structure's resistance to (heavy) drop.

3. Adaptability to withstand repeated free fall.

Test process description of mobile phone roller drop test machine

In the process of simulating the use of the user, the free fall of the mobile phone was tested.

Manually put the mobile phone into the drum → close the transparent cover and protective device → the motor drives the drum to rotate counterclockwise → turn and drop twice a week.

Function realization of mobile phone roller drop test machine

1. The motor realizes the fixed rotation of the drum (5-20 rpm).

2. The drop height is 500mm, 1000mm and 2 stations work at the same time.

3. The drum structure ensures that the mobile phone falls randomly, avoiding non-standard friction and collision movements.

Specification :

[Applicable Standard]: IEC60068-2-32 GB / T2423.8

Allow weight of test piece: 5kg (max)

Drum height: 500mm / 1000mm each

Roller width: 275mm

Rotation speed: 5-20 times / min

Test times: 1-999999 times (can be set)

Machine weight: 120kg

Power supply: AC 220V or specified
