High Precision Key switch load displacement curve tester

Brand:PENGJIE

Model:  PJ-S205

Applications

The High Precision Key switch load displacement curve tester is suitable for all kinds of buttons and switches ( load - stroke ) curve test, using WINDOWS Chinese window setting screen, the operation is simple and convenient, and all the data can be stored ( test conditions, load curve, test results, test report and so on. This machine adopts the servo motor drive, can provide high accuracy ( load - stroke ) measuring, and can get the key and switch curve completely accurate test.

Testing items:

• Rubber button (load-dispalcement) testing

• Metal shrapnel button (load-displacement) testing

• Cellphone,controller button (load-displacement) testing

• All kinds of buttons,keyboard life decay experiment

Features:

• All the test data set and chosen by the computer automatically saved: test conditions, test results, (load - displacement) curve \ lifetime decay curve, and automatically generate reports.

• High precision:load resolution is 0.01gf,displacement resolution is 0.001mm.

• Adopt high precision explosion proof Load Cell,repeatability error:0.01%

• High stability:adopt Japan Panasonic servo motor drive seamless system-level, non-grinding ball screw drive, the machine can eliminate noise and resonance.

• Together with a belt to ensure the stability of transverse displacement profile.

• Can enter the upper and lower limit conditions, automatically determine the test results Passed or Fail, and the maximum, minimum, average, standard deviation, etc.

•  Peak Force, Return Force, Distance and Click rate can directly display the values in the chart, does not need manual calculation.

• Measurement graphs by computer memory can always zoom in and zoom out, a piece of A4 paper can be arbitrarily designated place lots of graphs.

• Determination exclusively eucalyptus can be input on the value of the higher and lower limit specifications, measurement results can automatically determine the OK or NO.

• Enter the maximum measured stroke and load, the computer automatically controlled.

• Load units display N, Ib, gf, kgf can select freely .

• Computer directly print and storage load stroke curves, check the report. (No graph paper, general A4 paper is OK.)

• Test data is stored on the hard disk (each piece of data can be stored and unlimited).

• Test conditions are setted by the computer screen (including test stroke, speed, frequency, compressed , pause time, etc.).

• The rise of the content of inspection report can be modified at any time (Chinese or English).

• The inspection report can be generated automatically, without further input.

• Inspection reports can be converted to Excel and other instruments report format.

Technical parameters

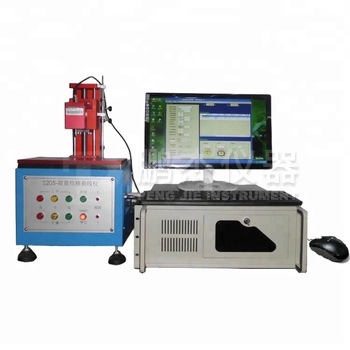

 Real imagines-we have different color can be chosed, and we can also customize according your samples.
