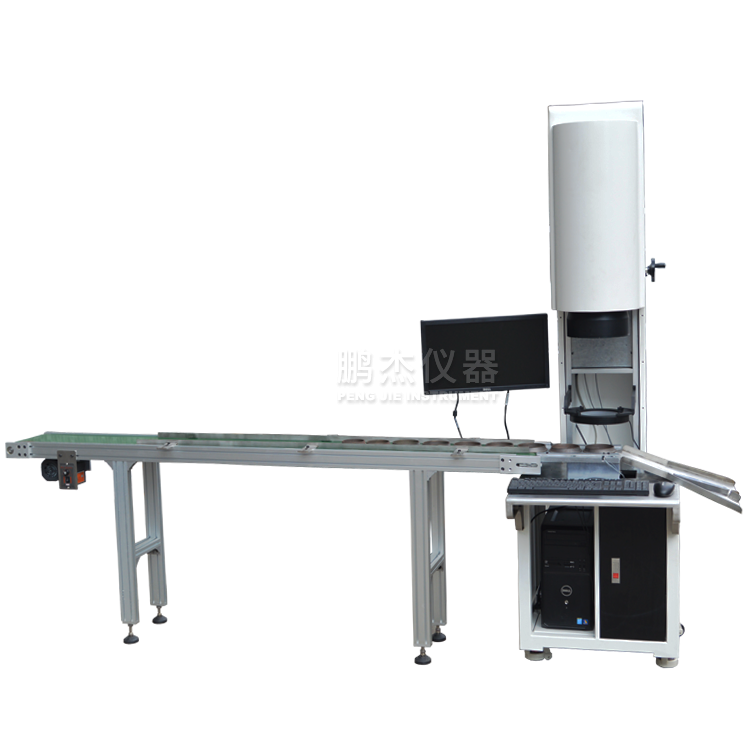

非标定制 自动化视觉测量仪Nonstandard Automatic Vision Measuring Instrument

仪器软件功能介绍Software Function Introduction

1.1 测量功能measuring function:

手动测绘：可绘制点、直线、圆（同心）、圆弧、样条曲线、垂直线、平行线等。便捷的操作。Manual mapping: drawing points, straight lines, circles (Tong Xin), arcs, spline curves, vertical lines, parallel lines, etc.. Convenient operation.

自动测绘：可自动测绘如：圆、直线、弧等图形。具有自动寻边、自动捕捉、自动成图、自动去毛边等功能，减少了人为误差。Automatic mapping: automatic mapping, such as: round, straight, arc and other graphics. The utility model has the functions of automatic edge finding, automatic capture, automatic drawing, automatic deburring, etc., and the artificial error is reduced.

相关测绘功能：相交、距离、镜像、夹角、点圆相切、两圆相切等。Related mapping functions: intersection, distance, mirror, included angle, point circle tangent, two circles tangent, etc..

标注尺寸：可在实时影像中标工作表面的任意几何尺寸，不同高度的角度、宽度、直径、半径、圆心距等尺寸。Dimensioning: any size, size, angle, width, diameter, radius, radius, etc of the image on which the image can be successfully received.

1.2 图形功能graphic function

鸟瞰功能：能使被测工件直观的显示。可以在计算机屏幕上完整的展示被测工件上的尺寸位置及被测几何元素之间二维图形，并可以打印出工件的完整图形和标注尺寸。Bird's eye view: visual display of the workpiece to be measured. On the computer screen, a complete display of the measured workpiece size, location and measured geometry between the two-dimensional graphics, and print the integrity of the workpiece graphics and dimensioning.

1.3 客户坐标client coordinates

测量时无需摆正工件或夹具定位，用户可根据自己的需要设置客户坐标（工件坐标），方便、省时提高了工作效率。When measuring, the positioning of the workpiece or fixture is not required, and the user coordinates the coordinates of the workpiece according to the requirements of the user, so that the work efficiency is convenient and time saving.

1.1 1.4兼容Auto CAD compatible with Auto CAD

可将绘制好的工件图及尺寸标注输出到Auto CAD中，生成完整的1:1的工件图纸，实现逆向工程。The drawn work drawings and dimensioning can be output to Auto CAD to generate the complete 1:1 drawings and realize reverse engineering.

1.5测量结果的输出output of measurement results

拍照功能：可将当前工件影像及所标注尺寸同时以JPEG或BMP格式拍照存档，并可调入到测量软件中与实际工件做对比。Camera function: the image and the dimensioning of the current workpiece can be photographed and archived in JPEG or BMP format at the same time, and can be transferred into the measurement software to compare with the actual workpiece.

报表功能：用户可轻易地将测量结果输出到WORD、EXCEL中去，自动生成检测报告。Report function: users can easily output measurement results to WORD and EXCEL, and automatically generate test reports.

1.6 SPC统计分析SPC statistical analysis

提供了一系列的管制图及多种类型的图表表示方法，使品管工作更方便，大大提升了品质管理的效率。Provides a series of control charts and various types of chart representation methods, so that quality control work more convenient, greatly improving the efficiency of quality management.

1.7 行位公差line tolerance

软件提供了一系列的功能计算工件的形状度和位置度。The software provides a range of functions to calculate the shape, degree, and position of the workpiece.

1.8 虚拟测量virtual measurement

软件脱离影像式测量仪，使用纯软件测量的测量方式。针对大工件、多任务时，大大节省了测量时间。The software is detached from the image measuring instrument and uses pure software to measure patterns. For large workpieces and multi tasks, the measurement time is greatly saved.
